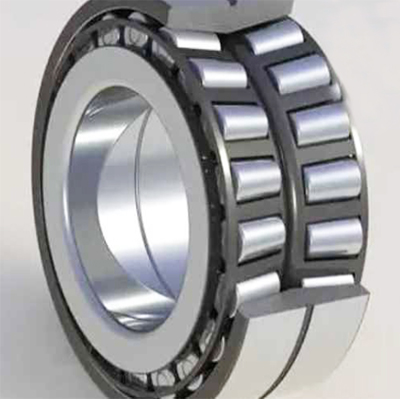

We manufactures double row tapered roller bearings in the TDO and TDI designs, in many variants and with different features. Depending on the design, these bearings can accommodate heavy radial loads, axial loads in both directions and have a high degree of stiffness. Double row tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry, e.g. tunnelling machines
Contact us| Designation | Principal dimensions | Basic load ratings | Design variant/feature | ||||
| dynamic | static | ||||||
| d(mm) | D(mm) | T(mm) | C(mm) | C(KN) | C0(KN) | ||
| 331945 | 228.6 | 488.95 | 254 | 152.4 | 3 143 | 4 500 | TDO/D |
| BT2B 328130 | 260 | 480 | 284 | 220 | 4 330 | 7 350 | TDO |
| BT2B 332504/HA2 | 300.038 | 422.275 | 174.625 | 136.525 | 2 177 | 4 750 | TDO/XDC |
| BT2B 332830 | 340 | 460 | 160 | 128 | 2 196 | 4 900 | TDO/D |
| BT2B 332831 | 360 | 480 | 160 | 128 | 2 211 | 5 000 | TDO/D |
| BT2B 332603/HA1 | 368.249 | 523.875 | 214.312 | 169.862 | 3 380 | 7 500 | TDO/D |
| 331197 A | 384.175 | 546.1 | 222.25 | 177.8 | 3 724 | 8 300 | TDO/D |
| BT2-8143/HA1 | 400 | 540 | 170 | 135 | 2 782 | 6 300 | TDO/D |
| 331656 | 415.925 | 590.55 | 244.475 | 193.675 | 4 175 | 9 650 | TDO/XDC |
| BT2B 332604/HA1 | 431.8 | 571.5 | 155.575 | 111.125 | 1 980 | 5 100 | TDO/D |
| 331657 | 479.425 | 679.45 | 276.225 | 222.25 | 5 010 | 12 700 | TDO/XDC |
| 331605 B | 498.475 | 634.873 | 177.8 | 142.875 | 2 750 | 7 350 | TDO/XDC |
| BT2B 332605 A/HA1 | 501.65 | 711.2 | 292.1 | 231.775 | 5 500 | 13 700 | TDO/XDC |
| BT2B 332446 | 536.575 | 761.873 | 311.15 | 247.65 | 6 270 | 16 000 | TDO/DC |
| 331640 A | 558.8 | 736.6 | 225.425 | 177.8 | 4 290 | 11 600 | TDO/DC |
| BT2B 328028/HA1 | 711.2 | 914.4 | 190.5 | 139.7 | 3 800 | 9 650 | TDO/D |
| 331554 A | 723.9 | 914.4 | 187.325 | 139.7 | 3 800 | 9 650 | TDO/D3 |
| BT2B 331554 B/HA1 | 723.9 | 914.4 | 187.325 | 139.7 | 3 800 | 9 650 | TDO/D3 |
| BT2B 332501/HA5 | 914.4 | 1 066.8 | 139.7 | 101.6 | 2 600 | 8 000 | TDO.1/D |
| BT2B 332780/HA5 | 1 160 | 1 540 | 400 | 290 | 14 200 | 38 000 | TDO.1/D |
| BT2B 332931 | 240 | 480 | 220 | 200 | 3 615 | 5 500 | TDI/WIY2 |
| 332168 | 300 | 440 | 105 | 105 | 1 076 | 2 040 | TDIS/NY |
| BT2B 332685/HA1 | 303.212 | 495.3 | 263.525 | 263.525 | 4 919 | 9 800 | TDIT/Y2 |
| 332068 | 305.033 | 560 | 200 | 200 | 2 920 | 5 300 | TDIS/N2Y |
| 332169 A | 305.07 | 500 | 200 | 200 | 2 734 | 5 200 | TDIS/N |
| 332169 AA | 305.07 | 500 | 200 | 200 | 2 734 | 5 200 | TDIS/NY |
| BT2B 334110/HA3 | 305.07 | 0 | 200 | 200 | 2 734 | 5 200 | TDIS.2/N |
| BT2B 328695 A/HA1 | 333.375 | 469.9 | 166.688 | 166.688 | 2 642 | 5 700 | TDIT/Y2 |
| 331527 C | 346.075 | 488.95 | 174.625 | 174.625 | 2 835 | 6 300 | TDI/WIY2 |
| BT2B 332913/HB1 | 346.075 | 488.95 | 104.775 | 95.25 | 1 170 | 2 750 | TDI/Y2 |
| BT2-8009/HA3 | 380 | 560 | 200 | 200 | 2 991 | 6 550 | TDIS/NY |
| 331158 A | 384.175 | 546.1 | 193.675 | 193.675 | 3 724 | 8 300 | TDI/GWIY2 |
| BT2B 331837 | 384.175 | 546.1 | 193.675 | 193.675 | 3 724 | 8 300 | TDI/Y2 |
| BT2B 328035/HA1 | 385.762 | 514.35 | 152.4 | 152.4 | 2 290 | 6 000 | TDI/GWIY2 |
| BT2B 328934/HA3 | 390 | 690 | 200 | 200 | 2 967 | 6 550 | TDIS.2/N |
| BT2B 334045/HA3 | 390 | 568 | 180 | 180 | 2 550 | 5 850 | TDIS.2/N1 |
| 332167 | 400 | 650 | 240 | 240 | 3 910 | 8 150 | TDIS/N2Y |
| BT2B 332167 DA/HA1 | 400 | 650 | 240 | 240 | 3 910 | 8 150 | |
| BT2B 331840 C/HA1 | 406.4 | 546.1 | 138.113 | 138.113 | 2 339 | 5 100 | TDI/WIY2 |
| BT2B 334085 A/HA1VA928 | 406.4 | 580 | 164.275 | 164.275 | 1 973 | 4 250 | TDIS.2/N1V |
| BT2B 328283/HA1 | 415.925 | 590.55 | 209.55 | 209.55 | 4 175 | 9 650 | TDIT/Y2 |
| BT2-8016/HA3 | 420 | 0 | 200 | 200 | 2 970 | 7 200 | TDIS.2/N2 |
| BT2B 334113/HA3VA901 | 445 | 620 | 180 | 180 | 2 120 | 5 100 | TDIS.2/NV |
| BT2B 332911 C/HA1 | 447.675 | 635 | 223.838 | 223.838 | 4 400 | 11 000 | TDIT/Y2 |
| BT2B 328523/HA1 | 450 | 595 | 178 | 178 | 3 169 | 8 150 | TDI/WIY2 |
| BT2B 334030/HA1 | 460 | 702 | 180 | 180 | 3 140 | 6 950 | TDIS.2/N1 |
| BT2-8215 | 464 | 615 | 150 | 136 | 2 160 | 5 850 | TDI |
| BT2B 334112/HA3 | 482 | 640 | 160 | 160 | 1 760 | 5 200 | TDIS.2/N |
| BT2-8142/HA3 | 482.6 | 733.425 | 190 | 190 | 2 860 | 8 300 | TDIS/NY |
| BT2B 331848 | 489.026 | 634.873 | 152.4 | 152.4 | 2 750 | 7 350 | TDI/Y2 |
| 331676 A | 500 | 730 | 280 | 280 | 6 600 | 16 000 | TDI.1/Y2 |
| 331182 A | 501.65 | 711.2 | 250.825 | 250.825 | 5 500 | 13 700 | TDI/GWIY2 |
| BT2B 332662 B/HB1 | 519.113 | 736.6 | 258.762 | 258.762 | 6 050 | 15 600 | TDI/Y2 |
| BT2B 332662/HB1 | 519.113 | 736.6 | 258.762 | 258.762 | 6 050 | 15 600 | TDI/Y2 |
| 331607 B | 558.8 | 736.6 | 196.85 | 196.85 | 4 290 | 11 600 | TDI/Y2 |
| BT2B 332626/HA7 | 560 | 820 | 242 | 242 | 5 010 | 11 400 | TDI.1/Y2 |
| BT2B 331476 AG/HA1 | 571.5 | 812.8 | 285.75 | 285.75 | 7 210 | 18 000 | TDI/GWIY2 |
| BT2B 331854 C/HA1 | 571.5 | 812.8 | 285.75 | 285.75 | 7 210 | 18 000 | TDI/Y2 |
| BT2B 331854/HA1 | 571.5 | 812.8 | 285.75 | 285.75 | 7 210 | 18 000 | TDI/Y2 |
| 331677 | 580 | 830 | 280 | 280 | 6 820 | 16 600 | TDI.1/Y2 |
| BT2B 332424/HA3 | 609.6 | 820 | 171.45 | 171.45 | 4 020 | 10 600 | TDI/GWIY2 |
| 331555 B | 635 | 939.8 | 304.8 | 304.8 | 6 710 | 16 600 | TDIS/N1Y |
| BT2B 328306/HA4 | 650 | 1 030 | 270 | 270 | 8 800 | 18 300 | TDI.1/Y2 |
| BT2-8164/HA4 | 690 | 980 | 355 | 355 | 10 227 | 25 000 | TDI/Y2 |
